Rotortuner RT-Vision
Designed for use by operators of Helitune data-gathering products, RT-Vision is a leap forward in both ideas and methods of data storage, presentation, and manipulation.
Description
Created with the operator in mind, it is built around an easy-to-use graphical user interface, providing instant access to required data. By virtue of its modular design, RT-Vision can be used to manipulate data from a variety of different machine types, from Helicopters to Engine Change Units to Land Borne Vehicles.
Features
RT-Vision is compatible with Microsoft Windows® XP Service Pack 3 and above, including Windows 7. It works as a standalone product or on a LAN/WAN IT system with full supervisory functions. The user interface is Windows-based, and both graphically and menu-driven. The usual Windows features are implemented, including a drag and drop facility for graph and report building.
Design structure
- Intuitive user interface.
- Modular design allows expansion through targeted add-ons.
- Available in several languages.
Current functionality
- Standard Windows installation program.
- View data across all current Helitune equipment platforms.

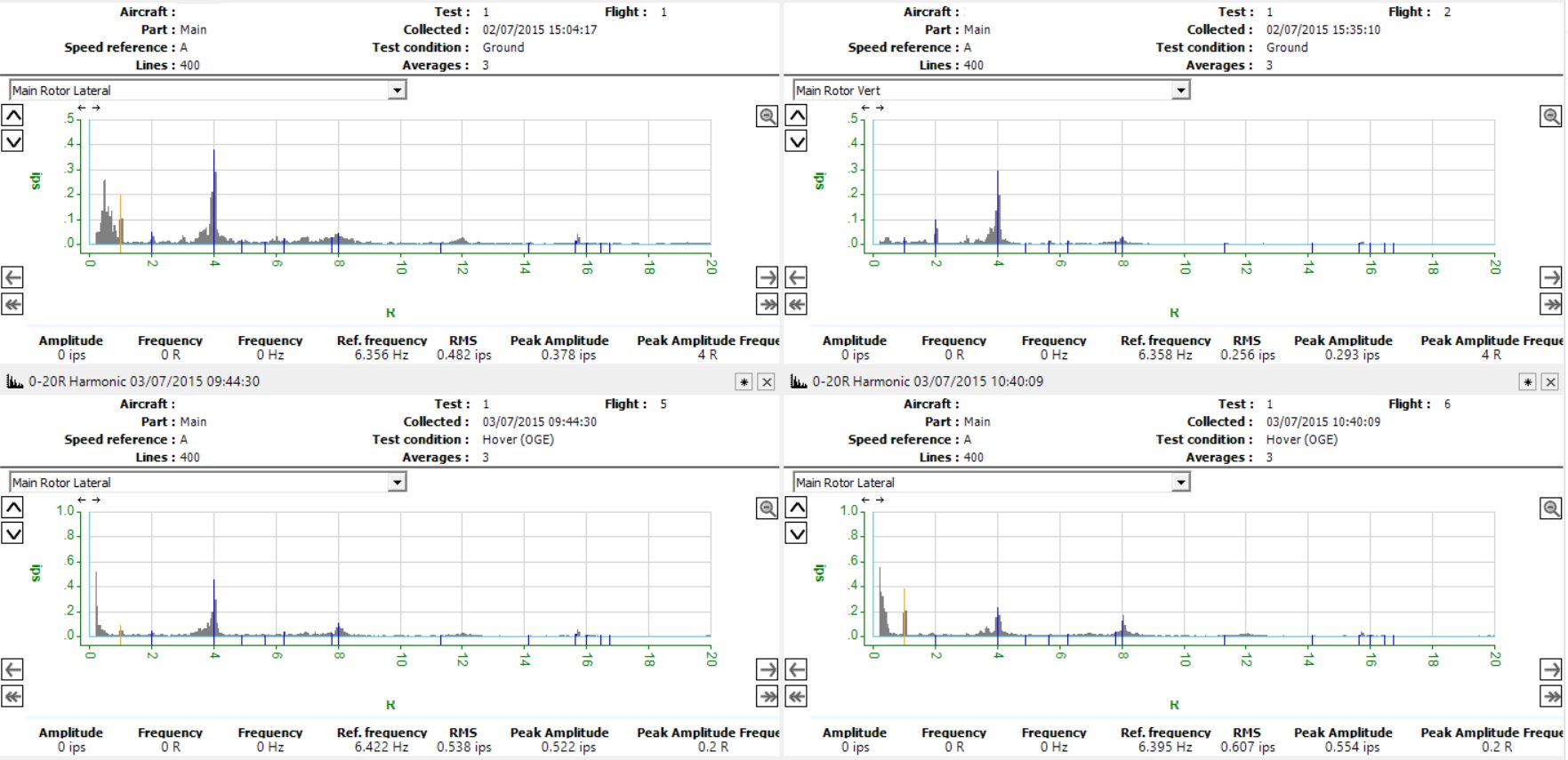

- Select and view FFT, RunUp/RunDown, Vibration Order Tracking, Blade Track, Balance, NR Tune, Settings, Prompts, and Notes information both graphically and in text format.

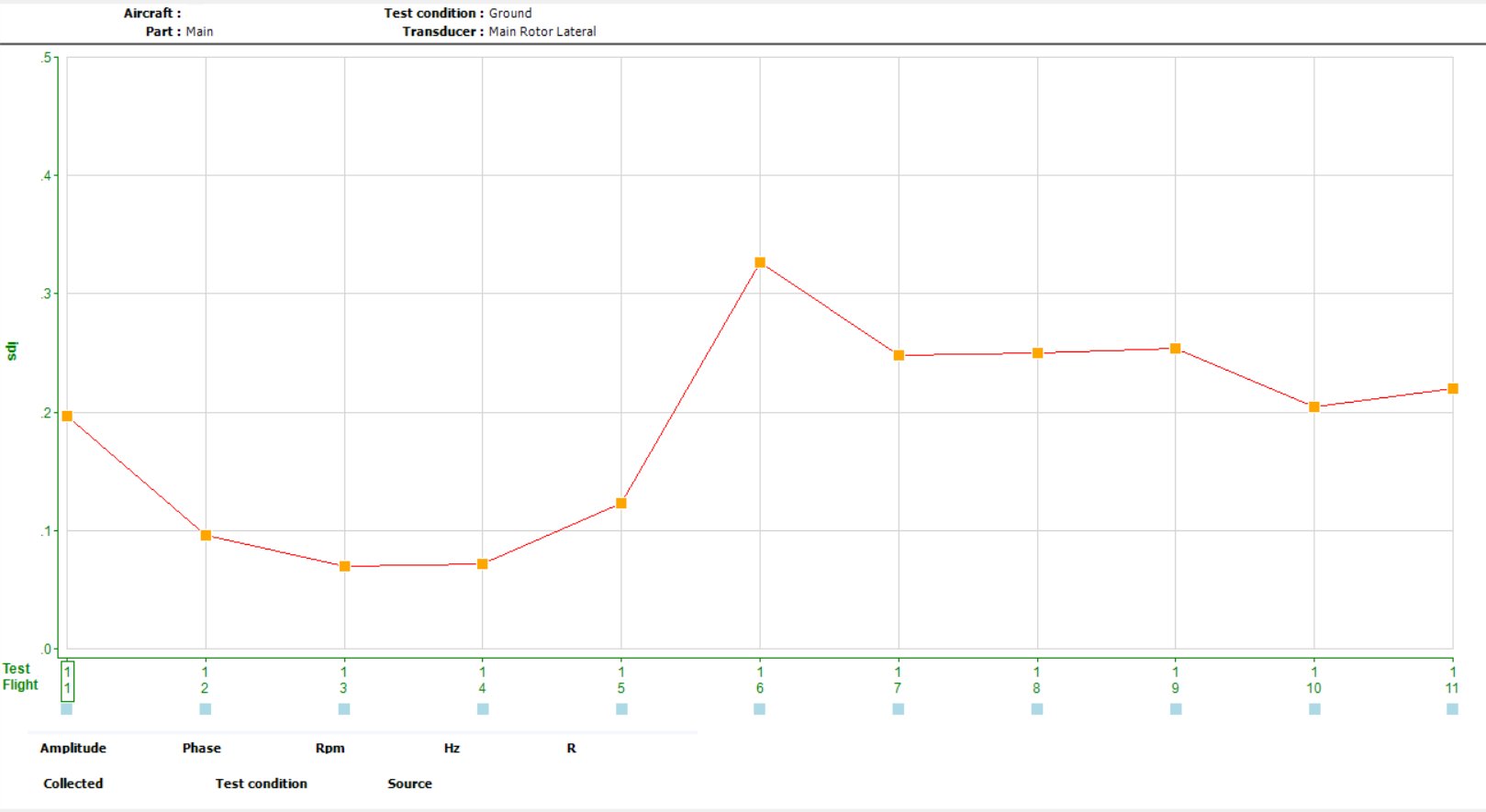

- Vibration trending for condition monitoring.
- Limit checking on the data import and on-demand.
- User-defined, easily configured quick reports.
- User-defined queries for database interrogation.
- Full audit trail.
- Automated database backup.
- Full supervisory control for User Groups and individual users.
- Individual user log-on identification.
- Export data in CSV formats, allowing data exchange with data manipulation packages such as Microsoft Excel and MathCAD.
- Predictor minimum flights, track and balance solutions package.
- Fully compatible with all current Helitune Rotortuner products.
- Card Copy Utility to transfer data between media types.
- Fault Code capability allows the recording of maintenance actions on a flight-by-flight basis.
- Synchronise data with RT-6 Flitepad.
- Export archived data back to a media suitable for use with RT2000, RT-5, RT-5JS+, and RT-JEM platforms.
- View data directly from the test card prior to import.
- Integral Intelligent Help System.
- Narrow Band Alarms allow amplitude limits to be defined across a frequency range. This would be used for frequencies that are not order dependant.
